4CH Mini SD Mobile DVR GPS Wifi 4G 4CH Kit Taxi CCTV Camera Car DVR with ADAS DMS
The AHD SD Card MDVR is a practical 4G+GPS +temperature monitoring system for refrigerated trucks mobile serveillance purpose which combines latest high technology such as temperature monitoring, Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.
Main Features
1. Standard H.264/H265 compression format ensures high rate, less storage space and clear.
2. SD card support, faster recording speed and easy installation.
3. Advanced PCB layout&design and reliable SMT processing
4. 8 - 36V Wide voltage
5. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation
6. 4 Alarm in, 1 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support.
7. Professional management platform and PLAY software
8. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm,CMS platform,
Customized Player.
9. Support Geo fence, Location, Speed alarm, G-sensor etc.
10. Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback,
11. Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation,
PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone),
Remote control and etc.

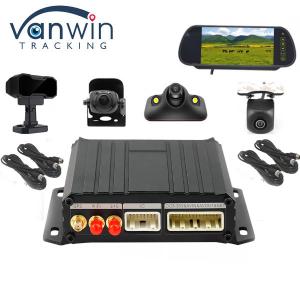

Product photos
Specifications
| Project | Model:VW9604 |
| Audio and video input | Video input | AHD:4ch 1080; IPC:Scalable 1-4ch |
| audio input | 3ch audio input,Mic input |
| Audio and video output | video output | Default 1 CVBS output (VGA output optional) |
| audio output | 1 channel audio output |
| Audio and video parameter coding | video encoding | H.264 Main Profile/H.265 |
| Video resolution | 1080P/720P/D1 optional |
| audio coding | Default G.726, G.711A optional |
| Storage | SD card | support 2 SD card | |
| Wireless network | 4G wireless | Support 1 SIM card, optional: all mainstream communication modules in the world |
| WIFI | Not support | 2.4G |
| Targeting | Beidou/GPS | Support hybrid positioning, speed detection, time synchronization |
| Interface | USB | 1 USB interface, support exporting data |
| serial port | Support 1 RS232, 1 RS485 can be external sensor |
| I/O | Support 4 level input, 1 output,1 ADC |
| network port | Not support | Optional |
| Intercom | 1 special intercom hand mark interface |
| Physical Specifications | size | 135.5mm(L)*137.7mm(W)*36.5mm(H) |
| weight | NW:0.5kg |
| GW:0.75 kg |
| Working environment | Operating temperature | -20～+70℃ |
| Working humidity | 8%~90% (non-condensing) |
| Other | Operating mode | Remote control, mobile APP, WEB |
| Gravity Sensing | Built in G-Sensor |
| Configurable AI algorithm | Driver identification, people counting, assisted driving, etc. |
Application
CMS Platform (CMSV7)
|
|
4CH Mini SD Mobile DVR GPS Wifi 4G 4CH Kit Taxi CCTV Camera Car DVR with ADAS DMS Images
|
